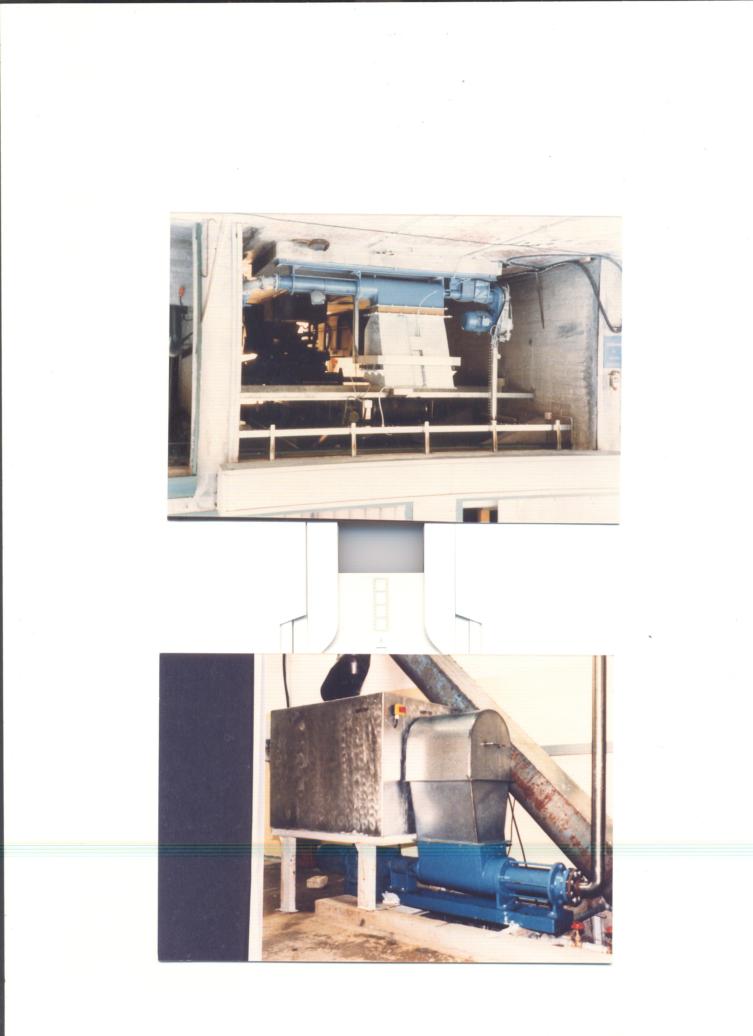

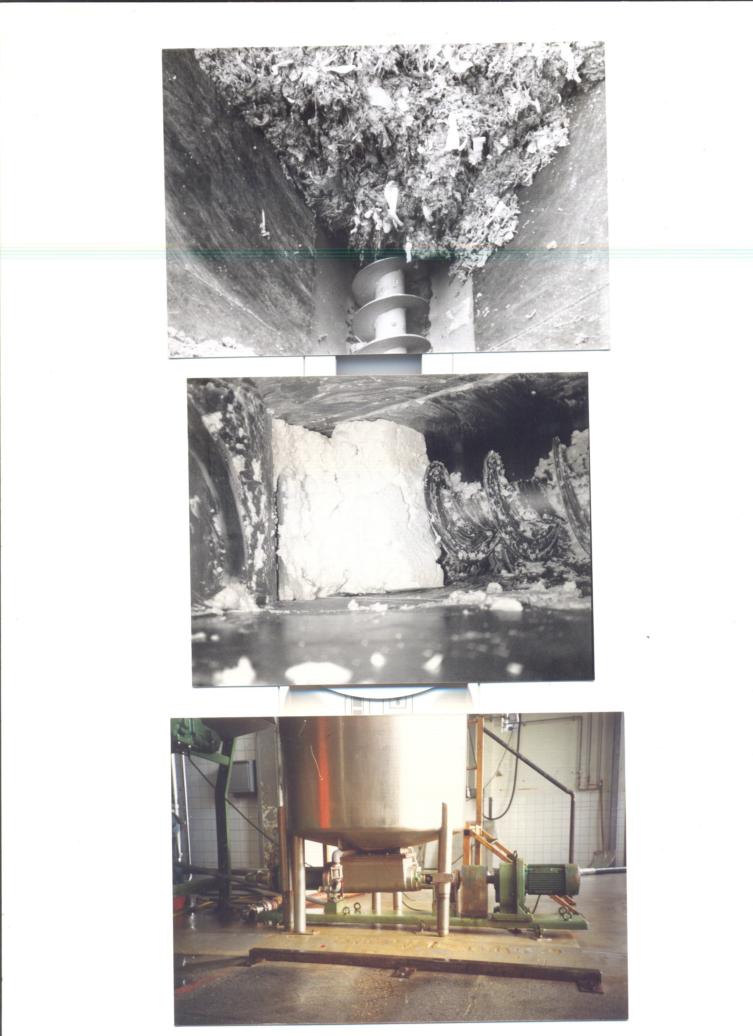

탈수케이크이송모노펌프,Eccentric Screw Pump,모노펌프,Mono pump

한국 제지공장 에서 다량으로 사용하는 해외각종BRAND업체의 MONO PUMP stator 와 ROTOR 의 SPARE PART AND ASSY신속한공급



Progressing Cavity Pump - PC ( Series ITP T1S )

Design and Operation ITP progressing cavity pump is a positive displacement rotary pump. The actual pumping elements of the pump are rotor and stator. The single helical rotor rolls eccentrically in a double threaded helix stator of twice the pitch length. A series of sealed cavities 180° apart are created that appear to progress from suction to discharge during one rotation of rotor.

The opposing cavities fill and empty simultaneously resulting in a pulsationless flow.The fluid travels axially with relatively low velocity and minimal agitation.The stator is made of a resilient elastomeric material and bonded to the stator tube. The important feature of the pumping principle is the ability to handle slurries and solid particles. The elastomer stator also permits passage of solid particles due to elastomeric deformation. The compression fit of the rotor and stator enables the Tushaco progressing cavity pumps to handle gaseous and low viscosity liquids. The pressure capabilities of the pump are a function of the number of cavities. Tushaco progressing cavity pumps are available in a wide variety of materials - cast iron or stainless steel wetted parts and 10 standard elastomer materials. Tushaco versatile progressing cavity pumps are rugged, compact and highly efficient. Fluids, which are delicate, shear sensitive or abrasive, low or high viscosity, with fibres, with high air content, or large solids, can be conveniently handled by Tushaco progressing cavity pumps.

Salient Features Sturdy drive design provides strength for rigorous continuous operation.  Unique pivot-joint design extends service life and reduces replacement cost.  Close coupled models with built-on speed reducers offer compact pumping unit.  Stators are available in a wide range of elastomers.  Suction lift to 28' w.c. (Water column) Possible drive arrangements include:  Direct drive with motor  Through gear box  V-belt pulleys  Variable speed drives  Special drives such as hydraulic, with I.C. engines.

Technical Parameters Capacity: 5 to 2700 lpm Differential Pressure: 6 to 24 bar Temperature: from cryogenic to 120°C Viscosity range: 1 to 100,000 cp

Typical Industries, Applications & Fluids

INDUSTRIES APPLICATIONS FLUIDS Municipal/ Industrial Transfer Service Sampling Polymer Feed Dewatering Sludge Transfer Chemical Feed Effluent with & without solids, Milk of Lime General Sewage Slurry, Media Protective Chemicals Industrial Centrifuge Charging, Transfer, Filter Charging Kiln Charging Drainage, Metering, Tank Loading/ Unloading Pit Emptying Gas Scrubbers Acids, Adhesives, Caustic Soda, Cellulose, Cement Slurry Dye Liquor, Dye Baths, Flouring, Plaster, Grout,Ink Lyes, Mortar, Coal Slurry, Lime Slurry Chemical  Process Transfer Loading/ Unloading, Metering Collecting Acids, Adhesives, Colours, Cosmetics, Detergents Glue, Lacquers, Hair Oil, Hand Washing Cream, Paints, Shampoos, Waxes Food Process & Production  Process Transfer Loading/ Unloading, Metering Collecting Alcoholic Beverages, Apple Puree, Baby Food, Beer, Beet Sludge, Biscuit Dough, Citrus Fruit Masher Cream Cheese, Edible Oil, Eggs, Raw Fats, Fish Residues, Fruit & Berry Masher, Honey, Ice Cream Lard, Meat Extract, Milk, Mustard, Tomato Paste, Vegetable Oil, Wine, Yeast Petrochemical Process & Production  Transfer Loading/ Unloading   Metering Crude Oil, Oil Sludge Oil Tank Residues, Processed Oil  Waste Products  Utilities  Transfer  Loading/ Unloading     Fuel Oil  Coal/ Oil Slurry  Coal/ Water Slurry



Category: 모노펌프(MONO PUMP),PULP & PAPER(제지펄프) PUMP,제지공장 STATOR와 개색, Tag: ALLWEILER,BONEMAN,MONO,NETZSCH,ROTOR,SEEPEX,STATOR,모노펌프,제지,펄프,펌프부품

06/04/2012 11:58 am



당사는 제지공장,수처리공정,식품,화학공장등에서 각종해외 수입maker’s의 Stator 와 Rotor를 전문취급 합니다



최단납기, 저렴한 가격, 철저한 품질관리로서 유럽 과 미주지역의 펌프업체 제품을



취급하고 있습니다,

Brand : Allweiler Bottrop, Seepex, Bornema, Roto, Mono, Robbins Myers, PCM,



Netzsch, 등의 Spare Stator 와 Rotor등을 신속히 공급해 드리니다

Spare parts: Elastomer Stator and Rotor for Eccentric Screw Pump



Stator Elastomeren:



-NBR dunkel



-NBR hell



-EPDM dunkel



-EPDM hell



-SBLBM



-CB



-CSM



-HNBR



-Silicon



-FKM(Viton)







Rotor Materialien:



- 1.4571



- 1.2436



- Hard Cr. Tool steel and Others





영업부 011-352-1648

e-mail: buypump@paran.com
